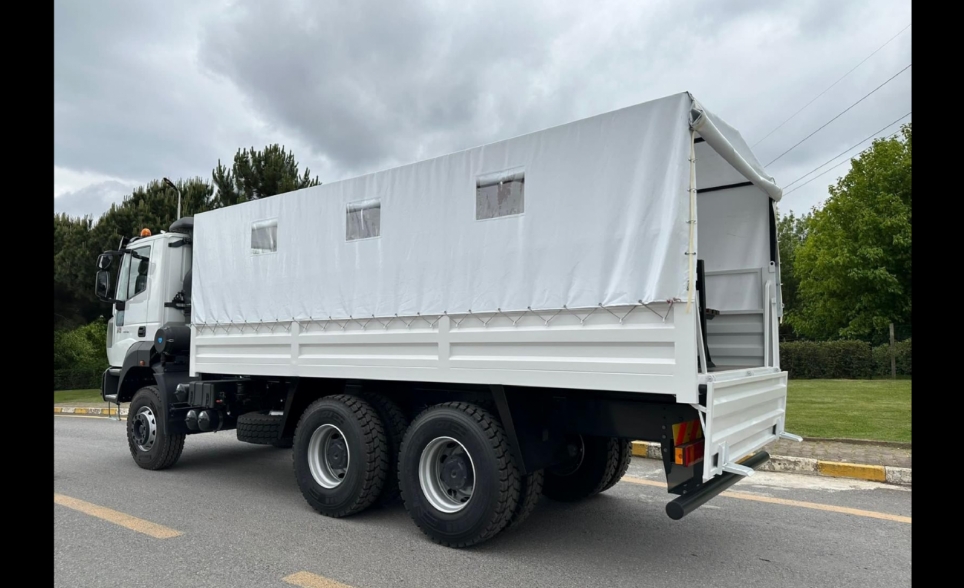

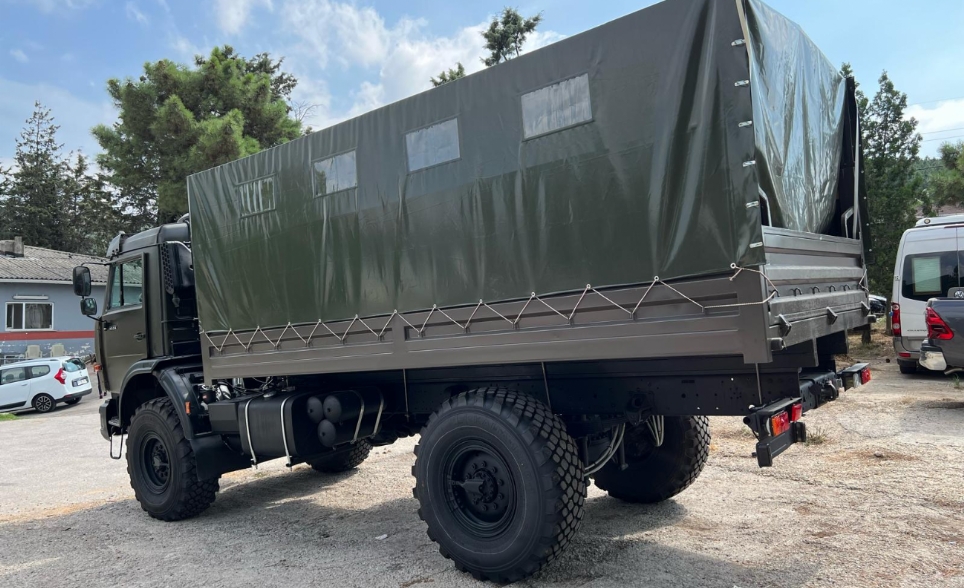

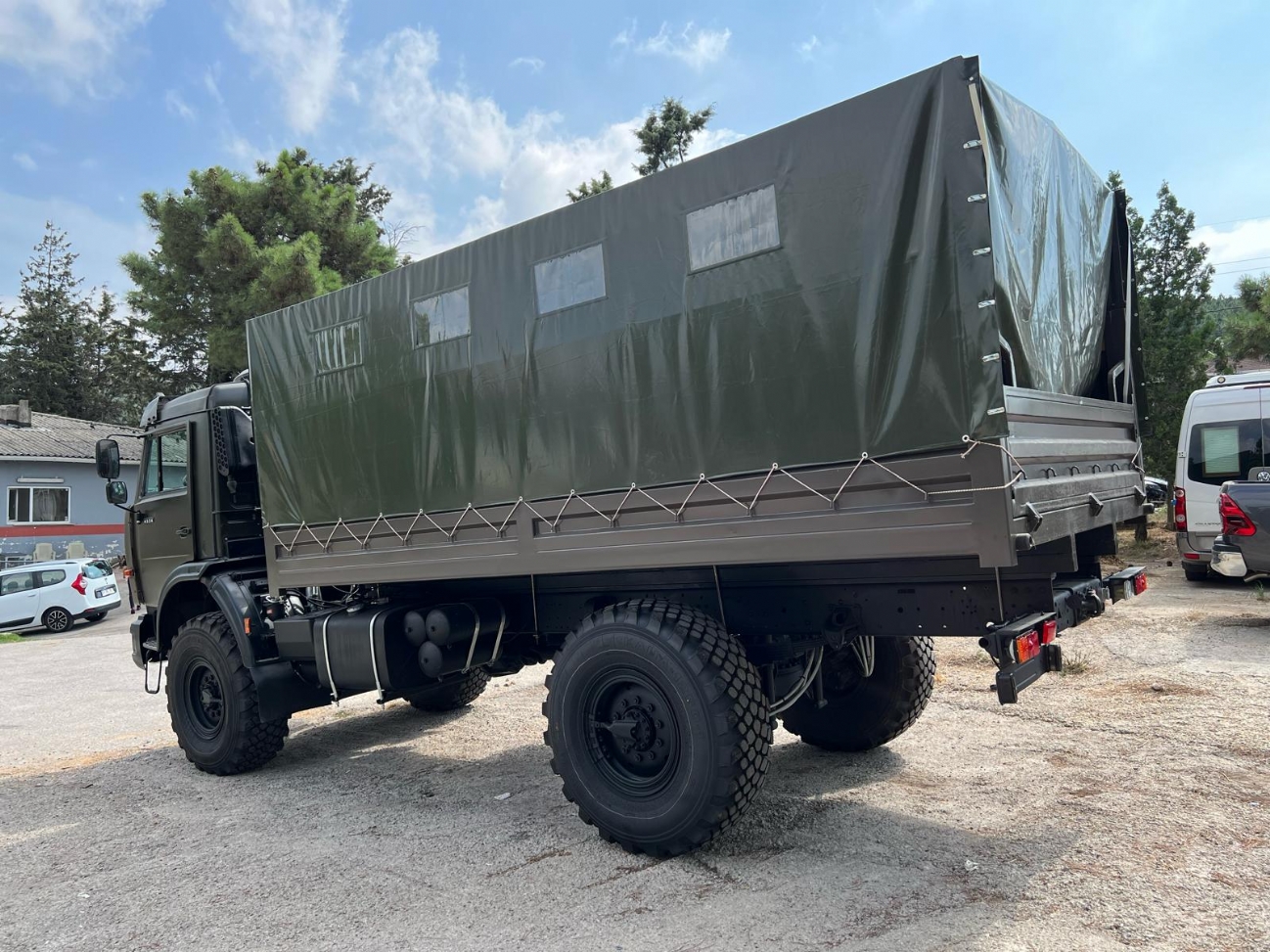

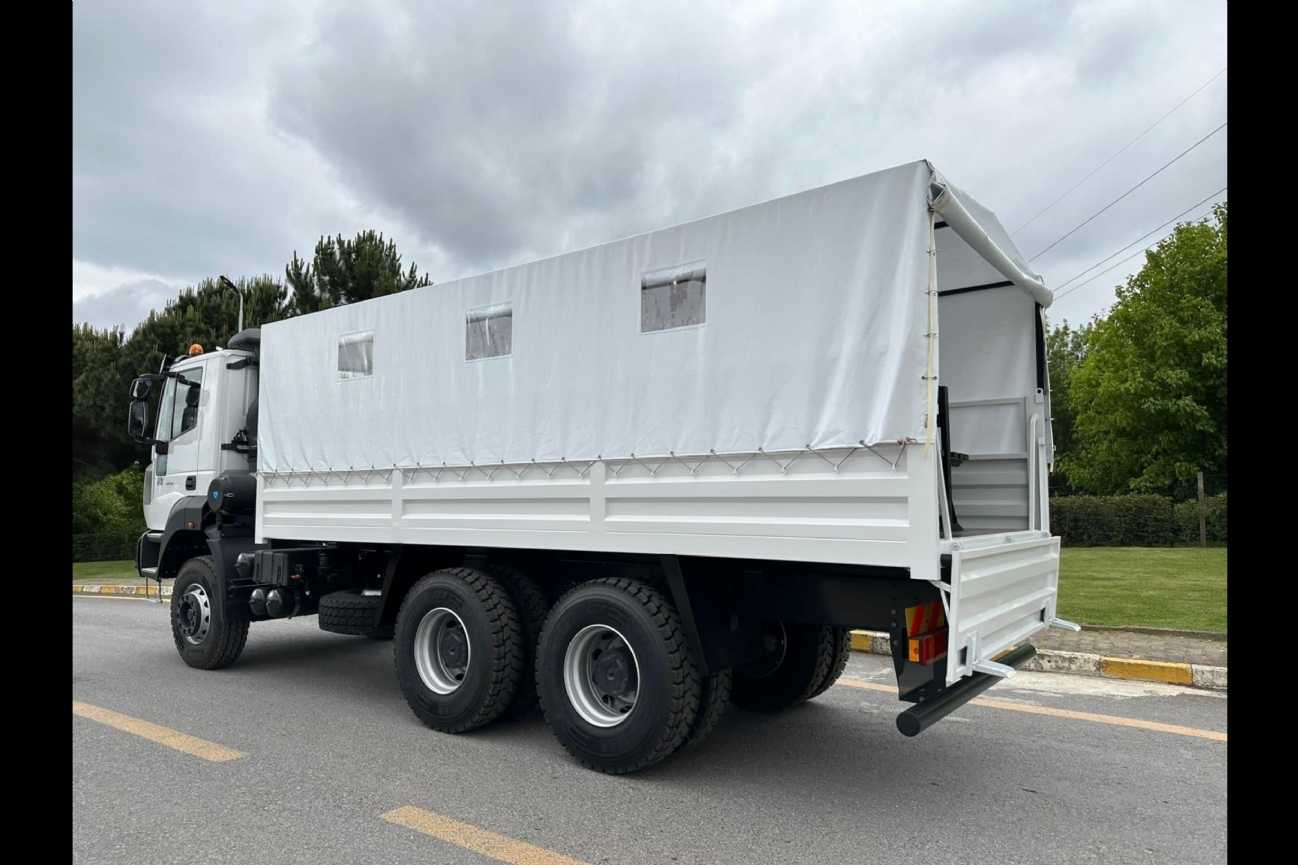

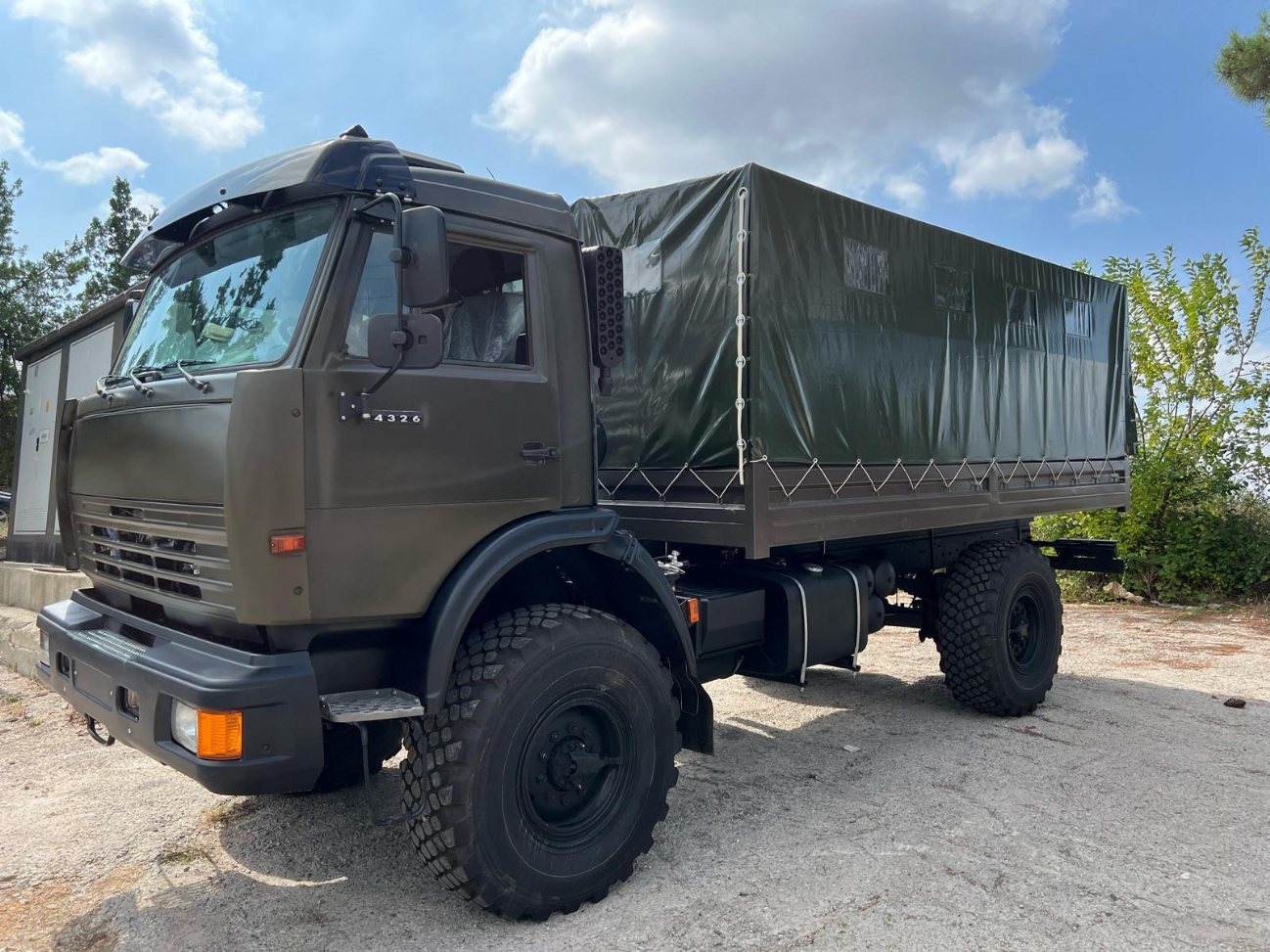

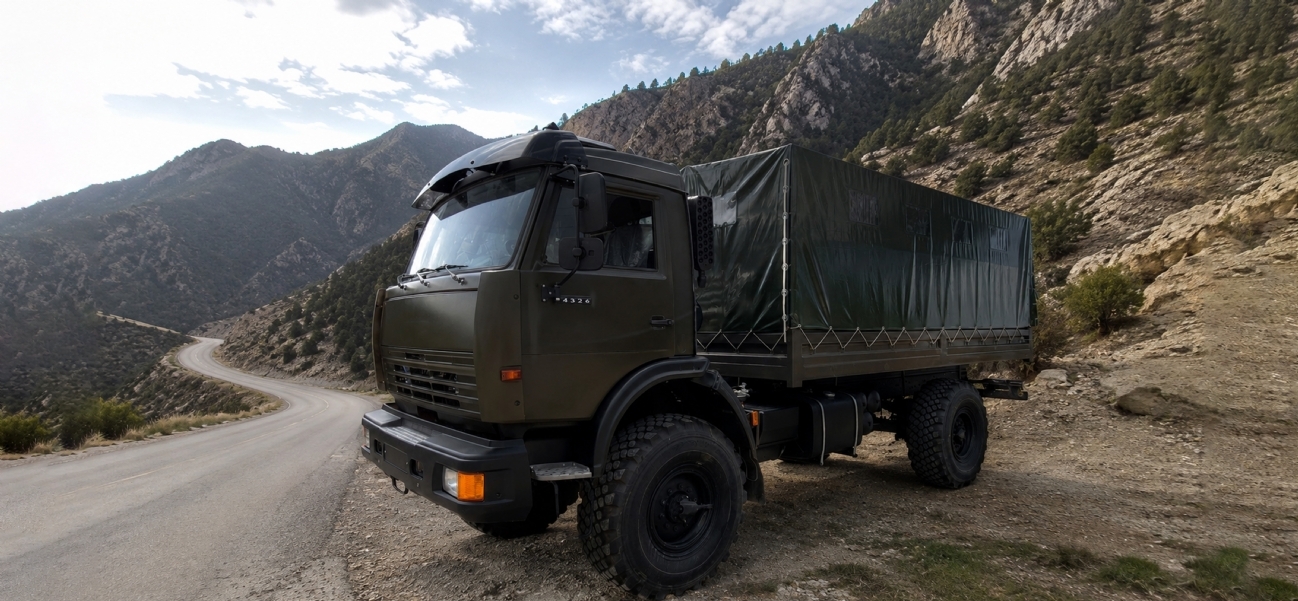

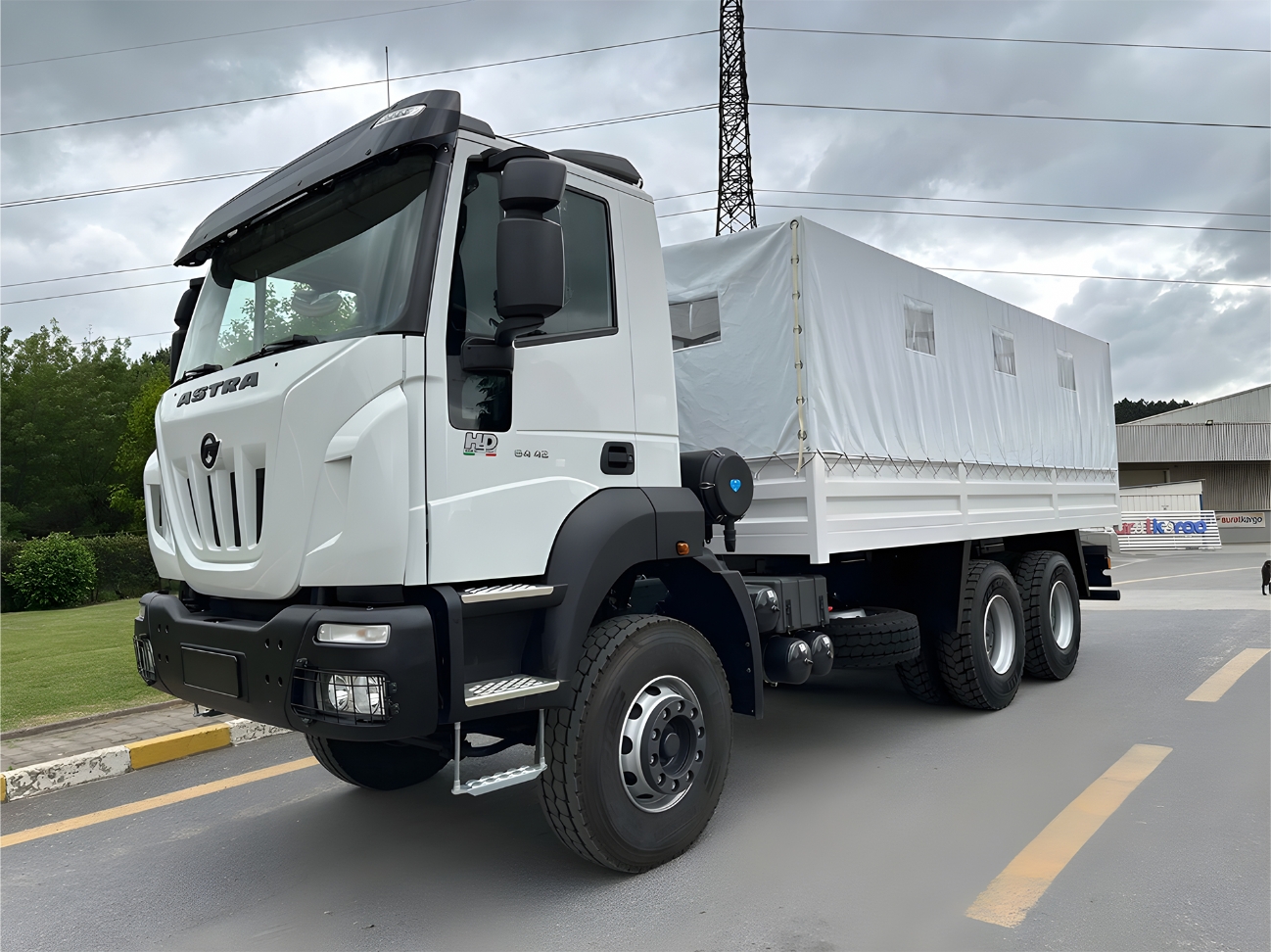

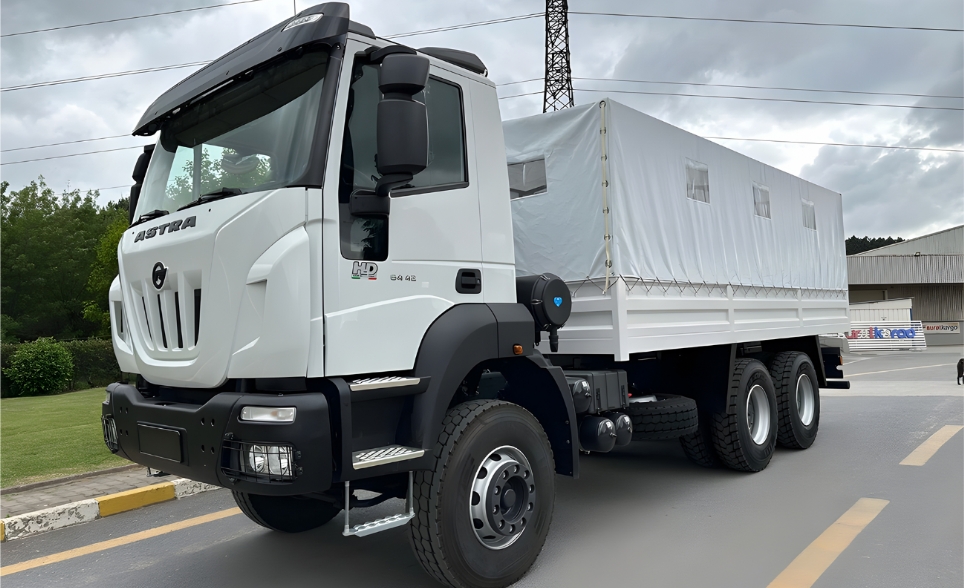

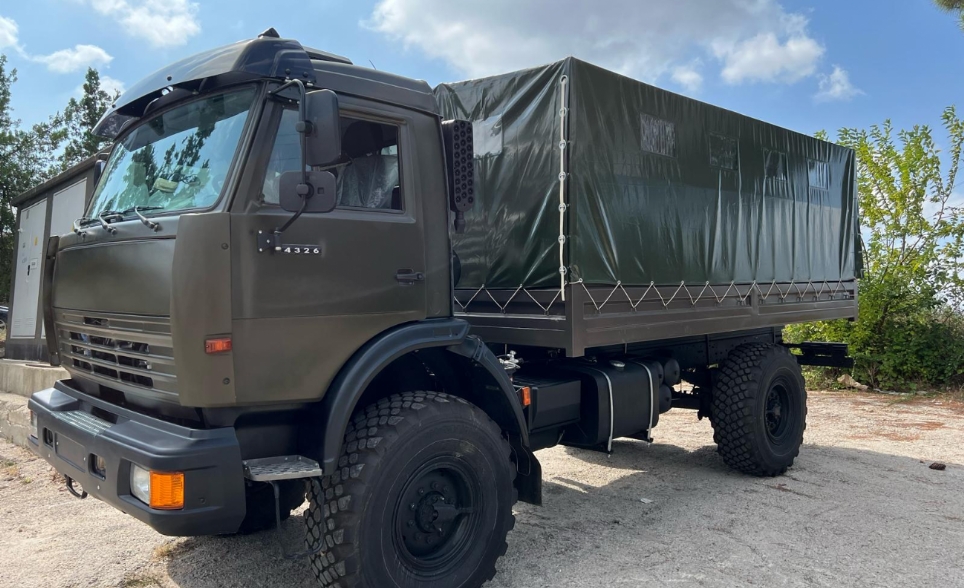

Troop Carrier

Model Options: 4x4 and 6x6 personnel carrier models are available.

Military Area Features:

  • The seating arrangement is 3-line.
  • Seating size includes a width of 500mm, a height of 450mm, and legroom of 400mm.
  • A fold-out ladder is present on the rear door.
  • The vehicles are painted with military camouflage paint.

Body Structure and Materials:

  • The door is a rear door with a ladder.
  • The lower seat material is 12mm wood, and the backrest material is 8mm wood.
  • The seat frame material is 40x40 profile and 3mm st37 sheet metal.
  • The auxiliary chassis material is U-Bending 5mm ST52.
  • Side panels are made of 2mm S235, and side panel brackets are made of 4mm S235.
  • The tent frame material is 3/4" Pipe.
  • A tool and supplies cabinet is included.
  • Regulation-compliant rear bumper and side barrier are present.

Capacity

  • 4x4 Troop Carrier: Has a seating capacity of 15 people.
  • 6x6 Troop Carrier: Has a seating capacity of 30 people.

Design and Dimensions

  • 4x4 Troop Carrier: Overall length is 4746mm, overall width is 2490mm, and overall height is 2380mm.
  • 6x6 Troop Carrier: Overall length is 5846mm, overall width is 2490mm, and overall height is 2380mm.
