General

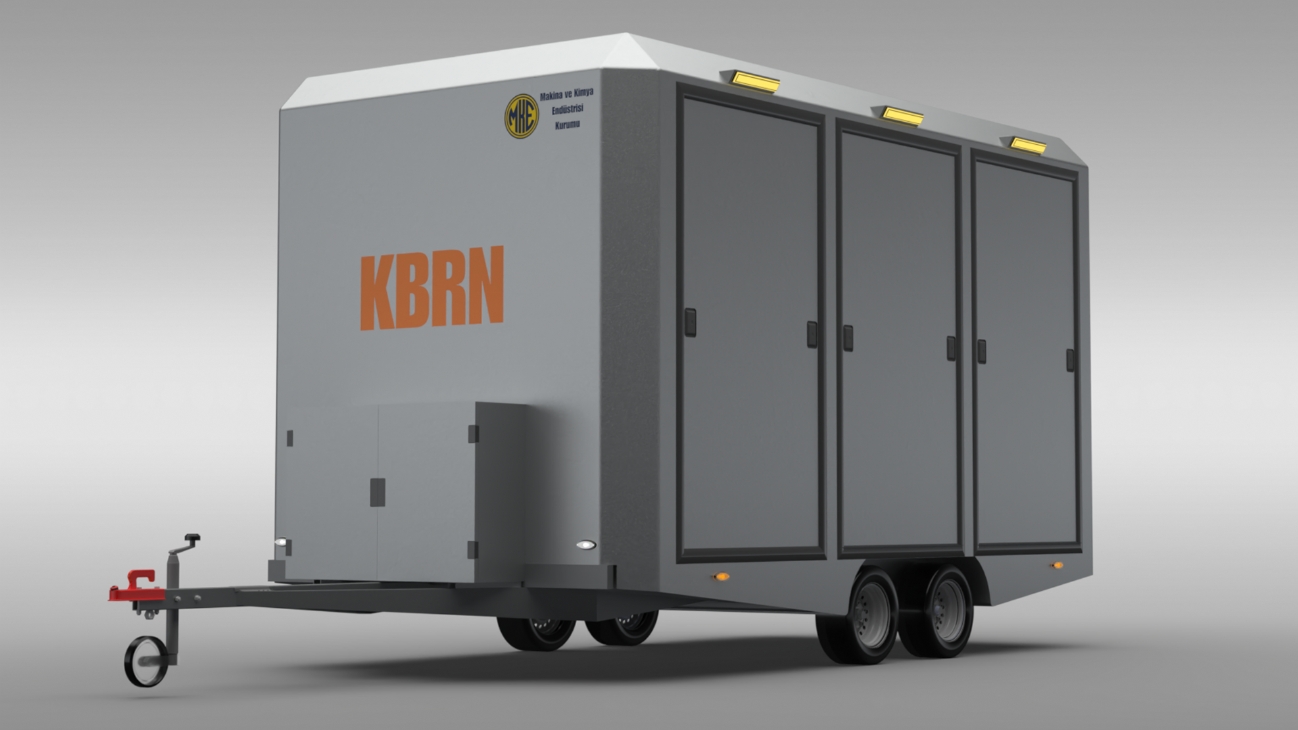

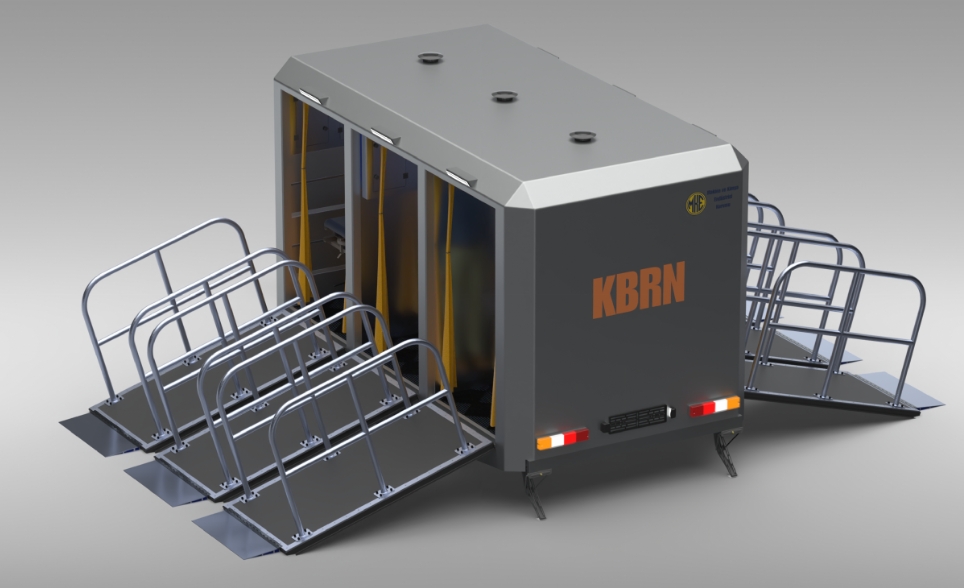

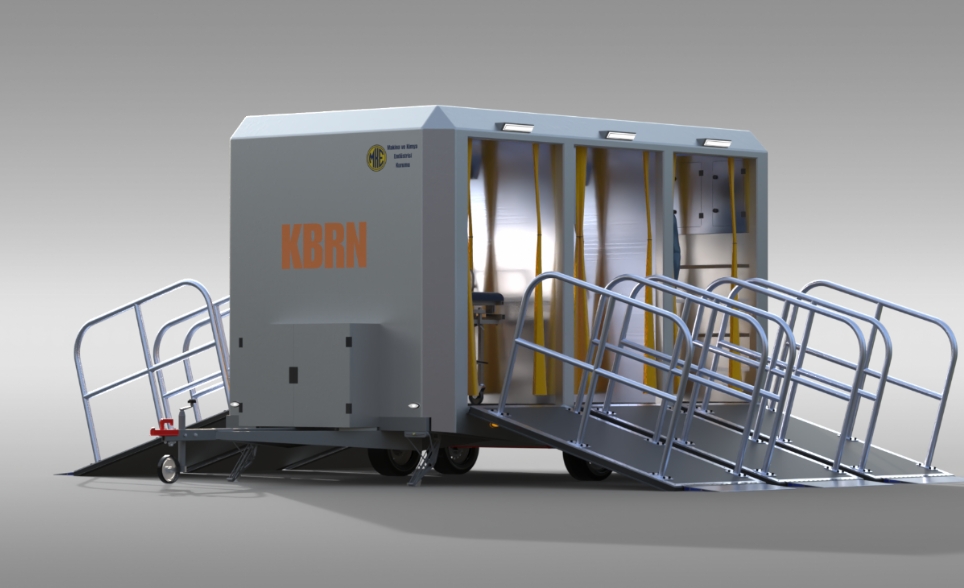

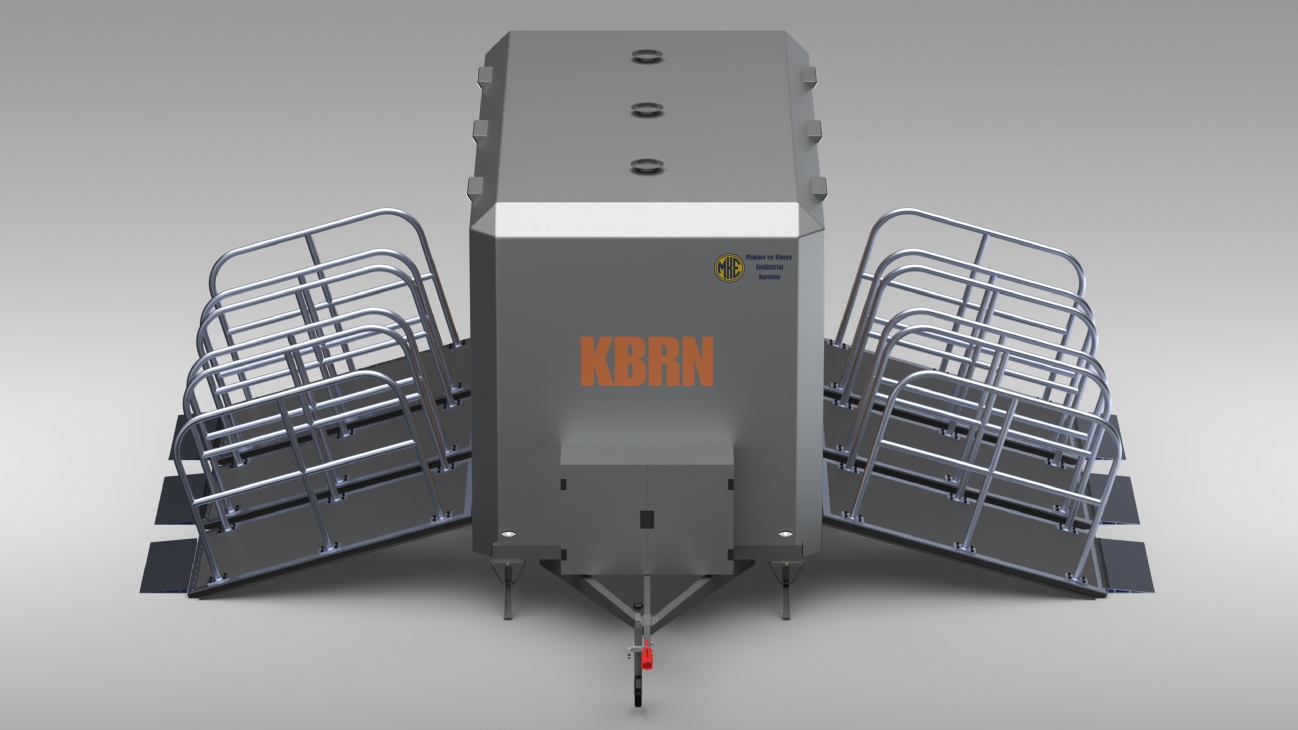

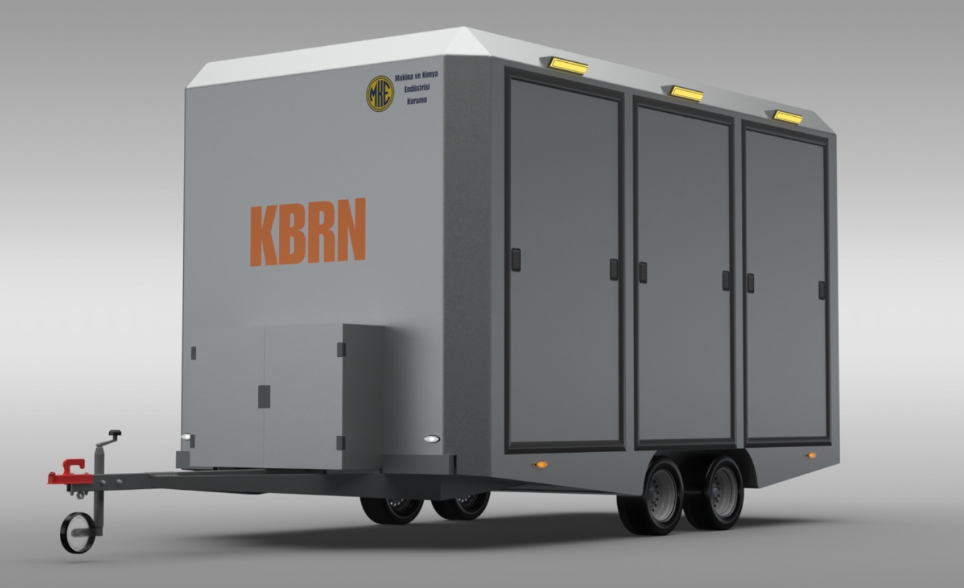

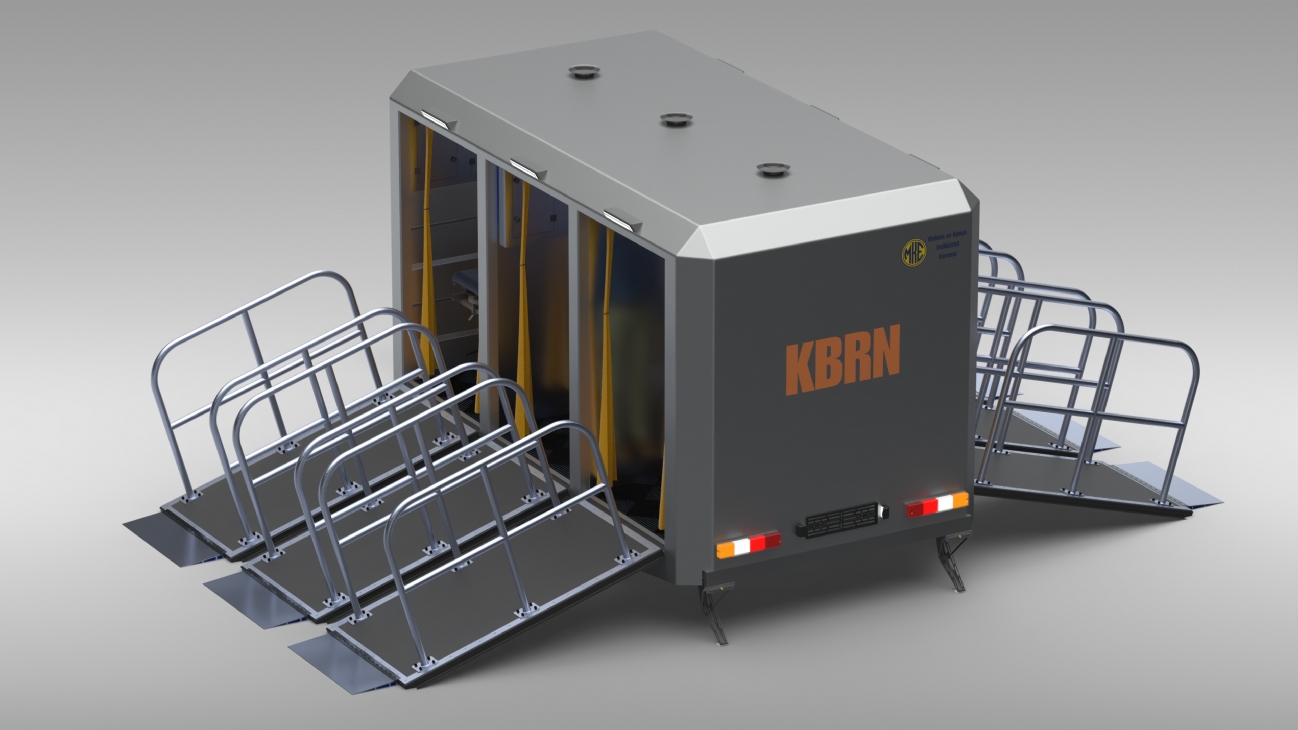

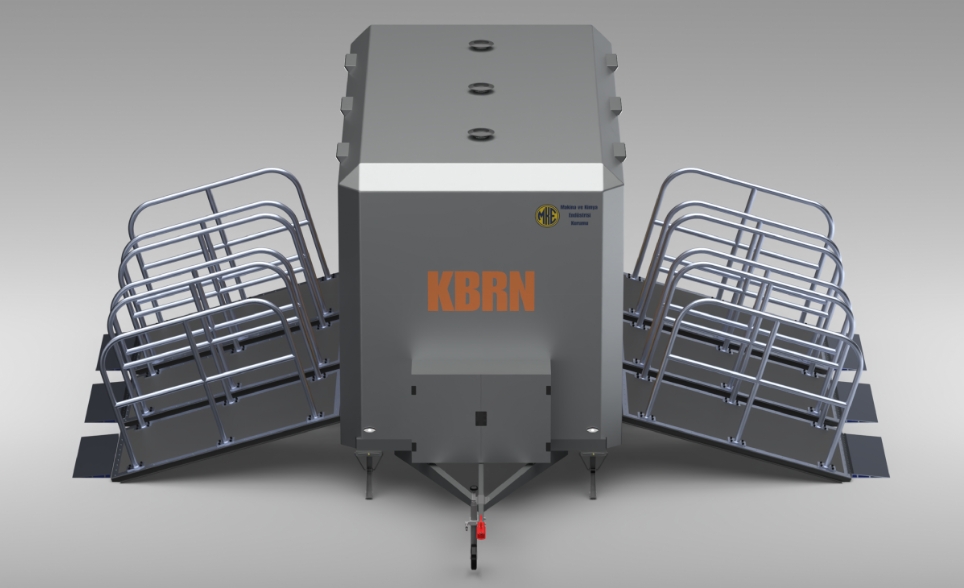

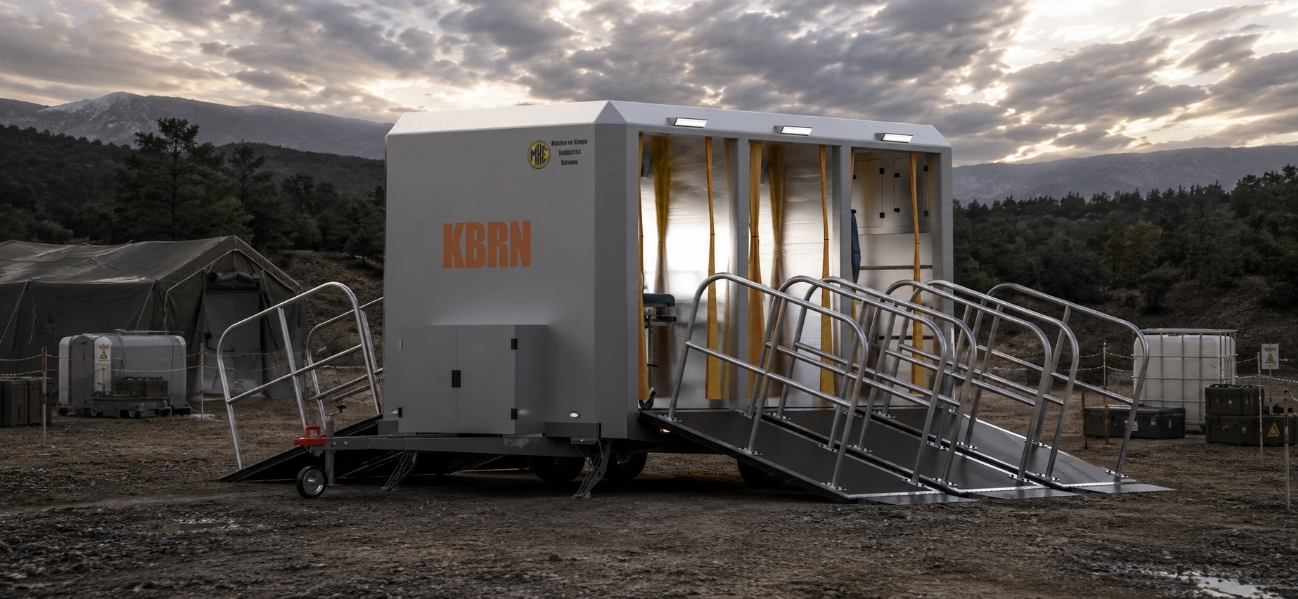

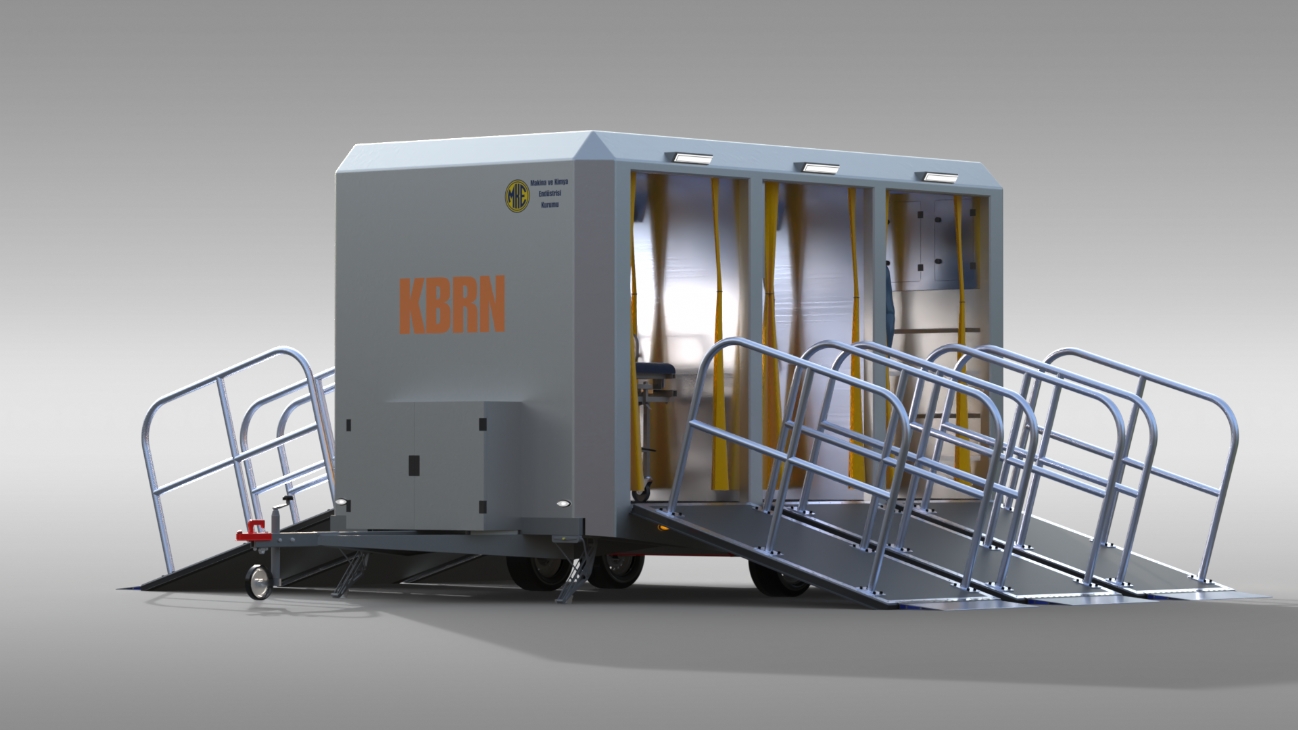

- Type: Trailer-type mobile CBRN decontamination unit.
- Purpose: Personnel and equipment decontamination; field emergency response.
Water, Waste and Energy
- Clean water tank: 500–2,000 L; Waste tank: separate, leakproof.
- Pumps: High-pressure pump 3–7 bar.
- Power: 230 V AC 50 Hz mains supply; Diesel generator support: 6–10 kVA or 24 V DC.
- Consumption: 3–8 kW.
Control and Sensors
- Control: PLC + touchscreen HMI; multi-language interface.
- Sensors: Water level, pressure, temperature, pH/conductivity; optional chemical agent detectors.
Safety and Compliance
- Safety: Emergency stop, anti-slip floor, fire extinguisher.
- Compliance: Design compliant with electrical and environmental standards; compliance with waste management legislation.
Maintenance and Optional Equipment
- Maintenance: Daily visual inspection; monthly filter/pump check; annual sensor calibration.
- Optional: Integrated generator, extra water tank, chemical neutralization module, radiation meter integration.
