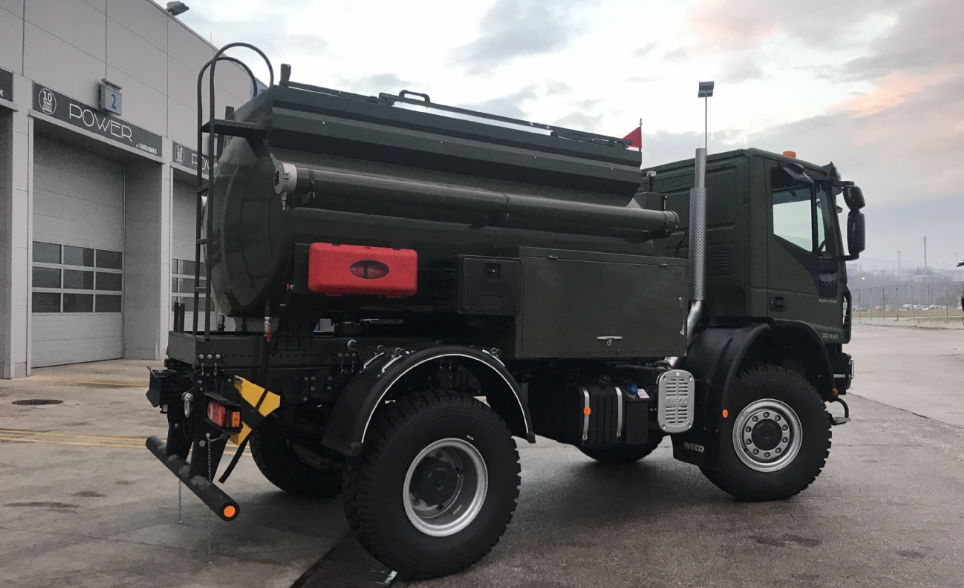

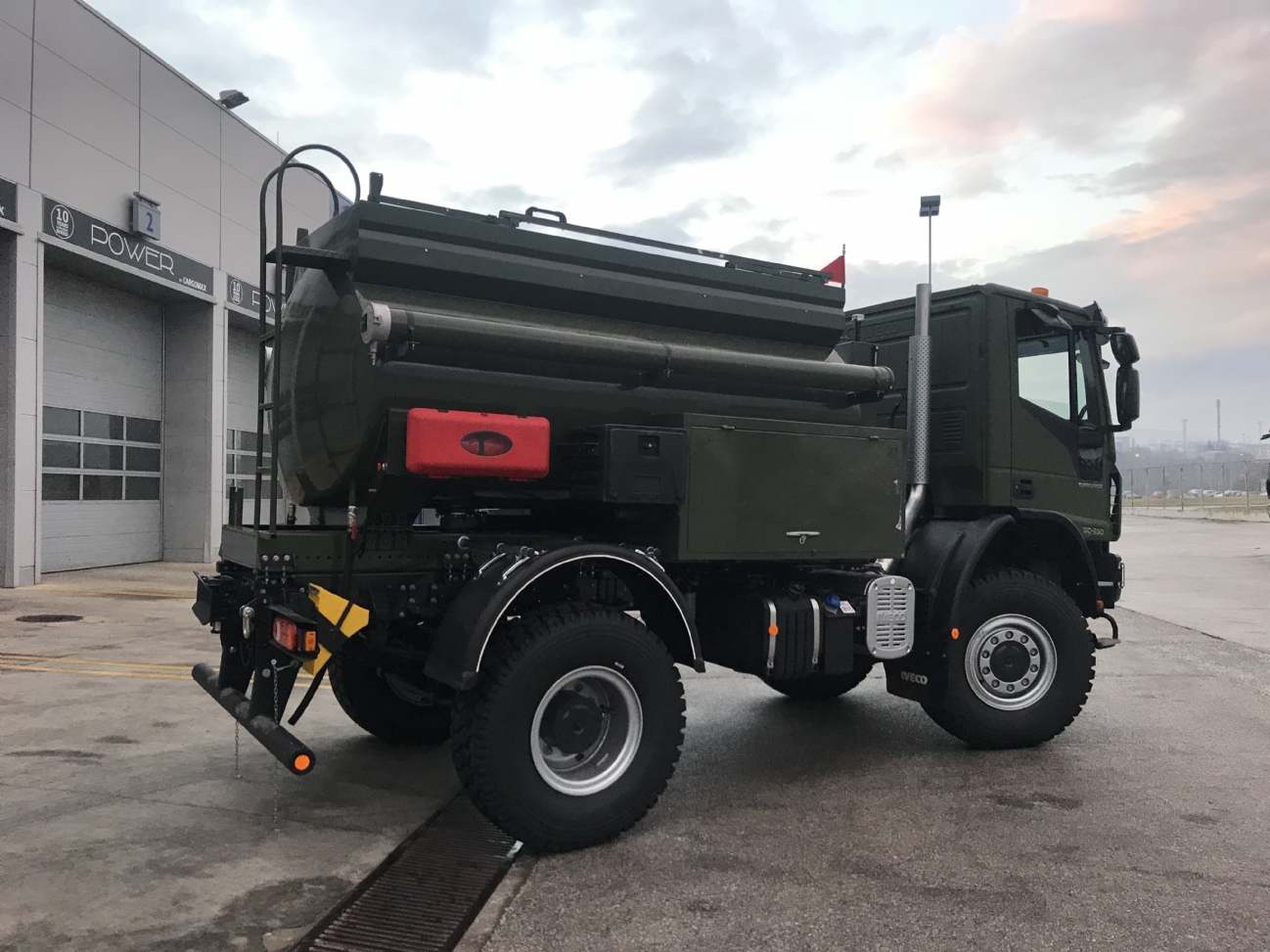

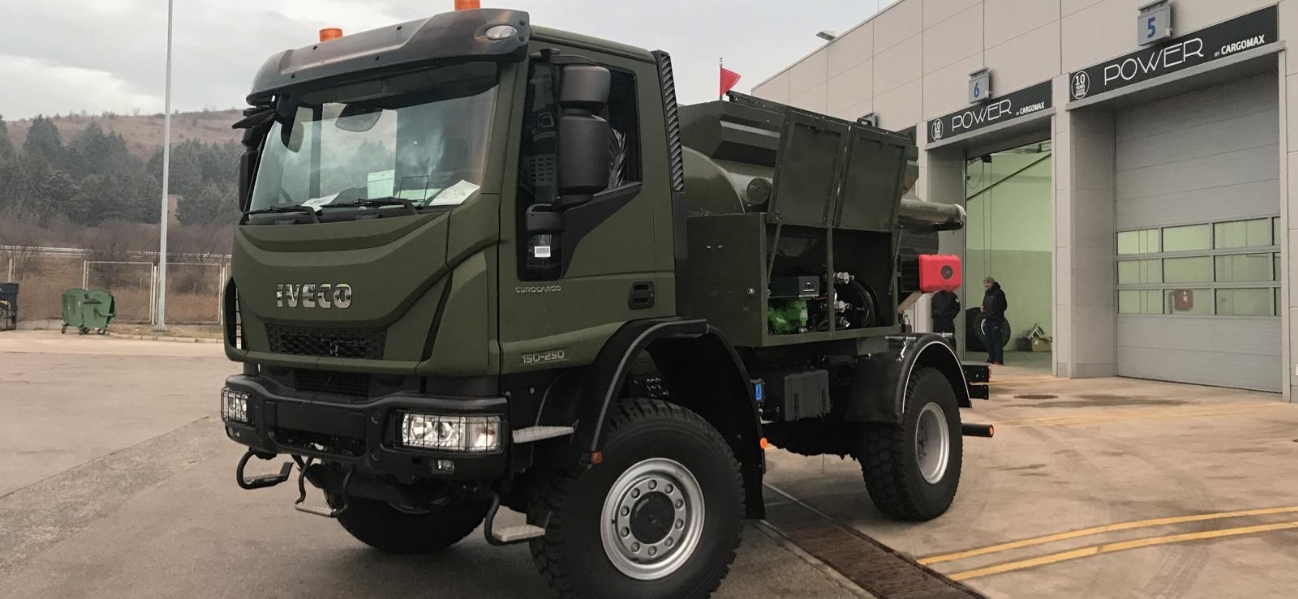

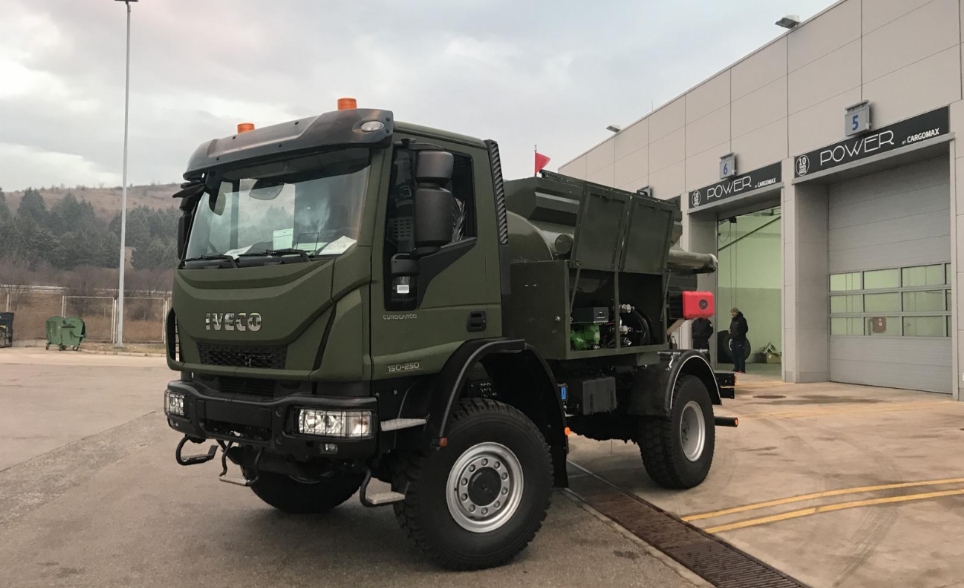

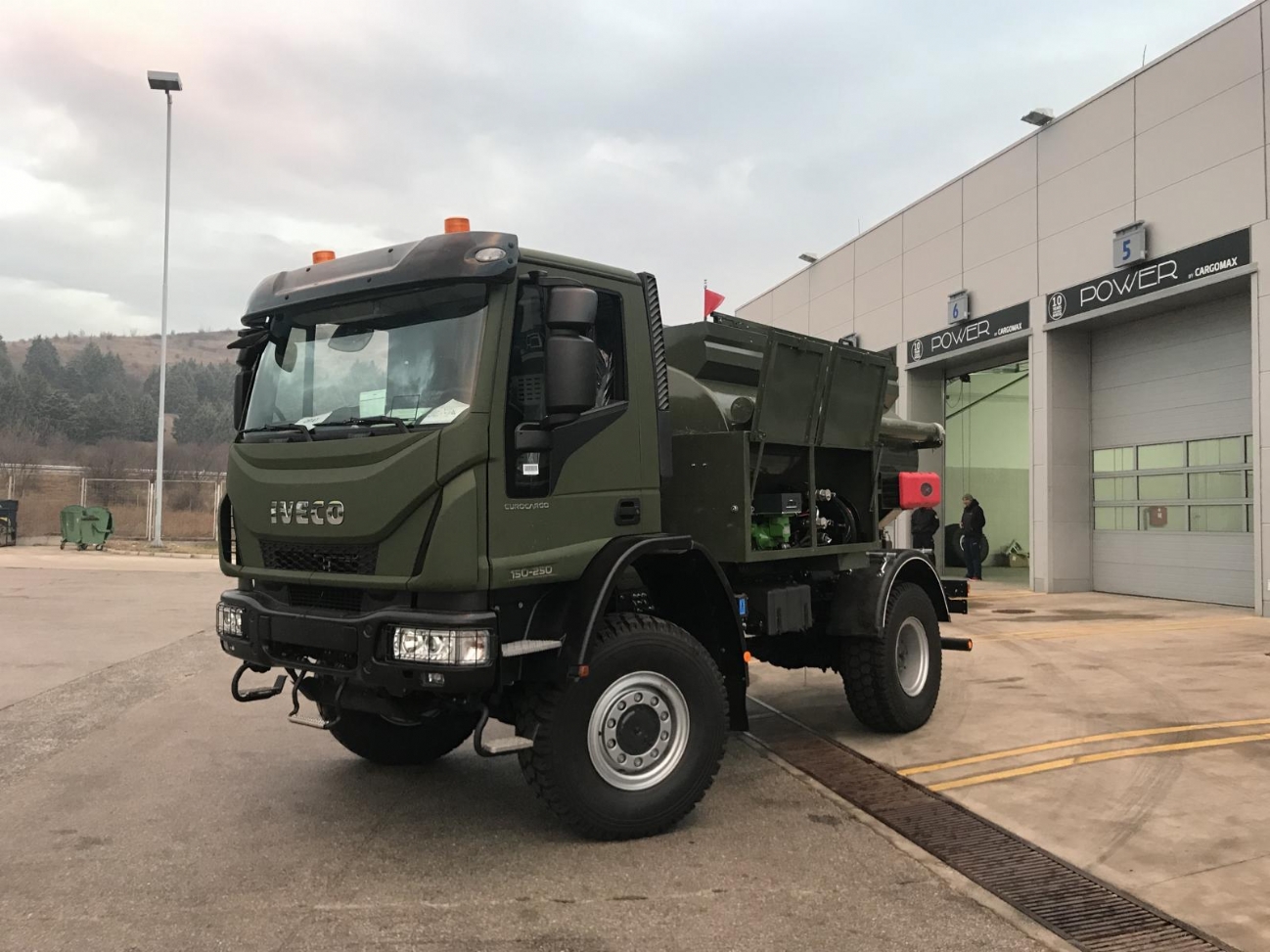

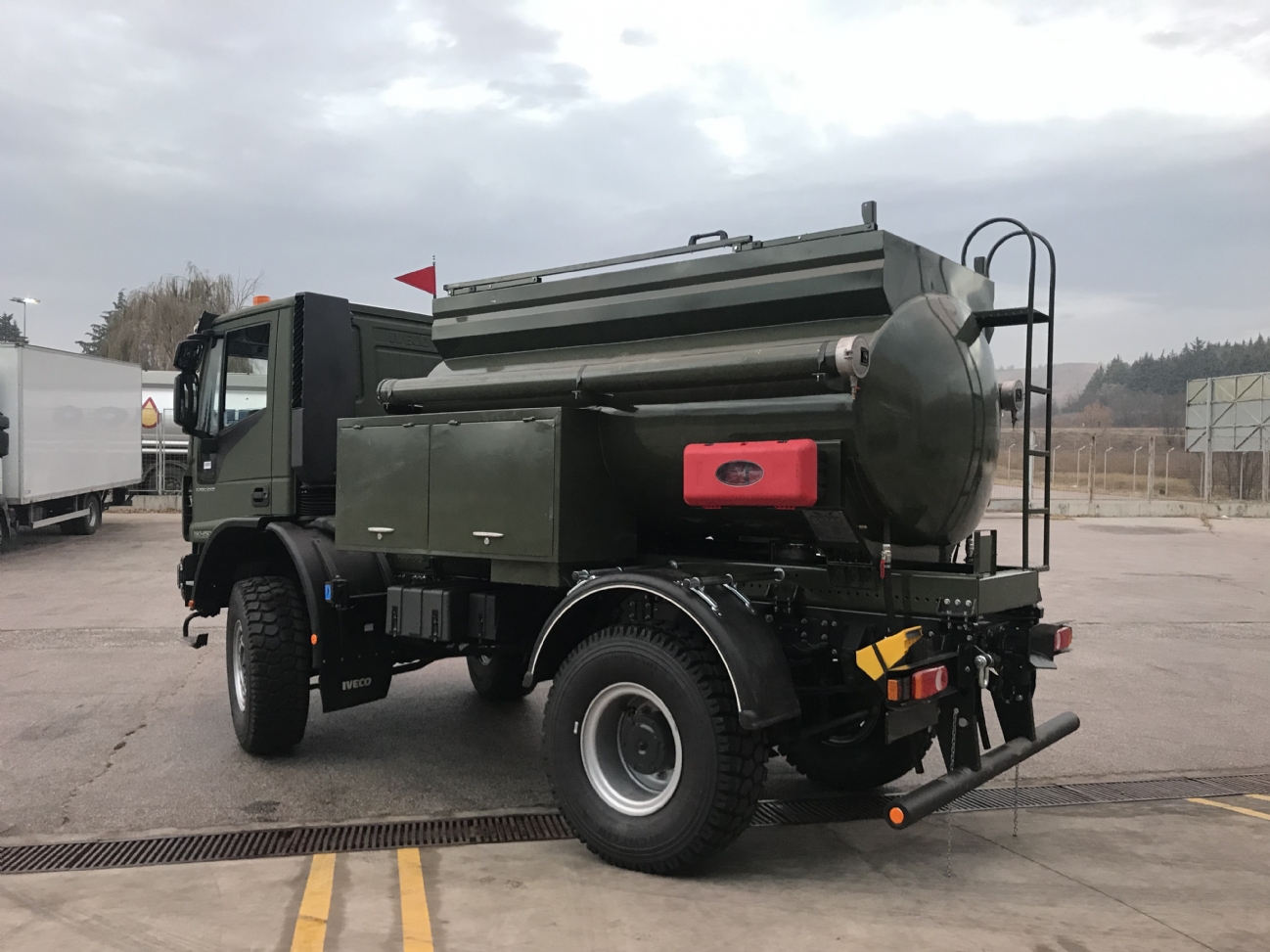

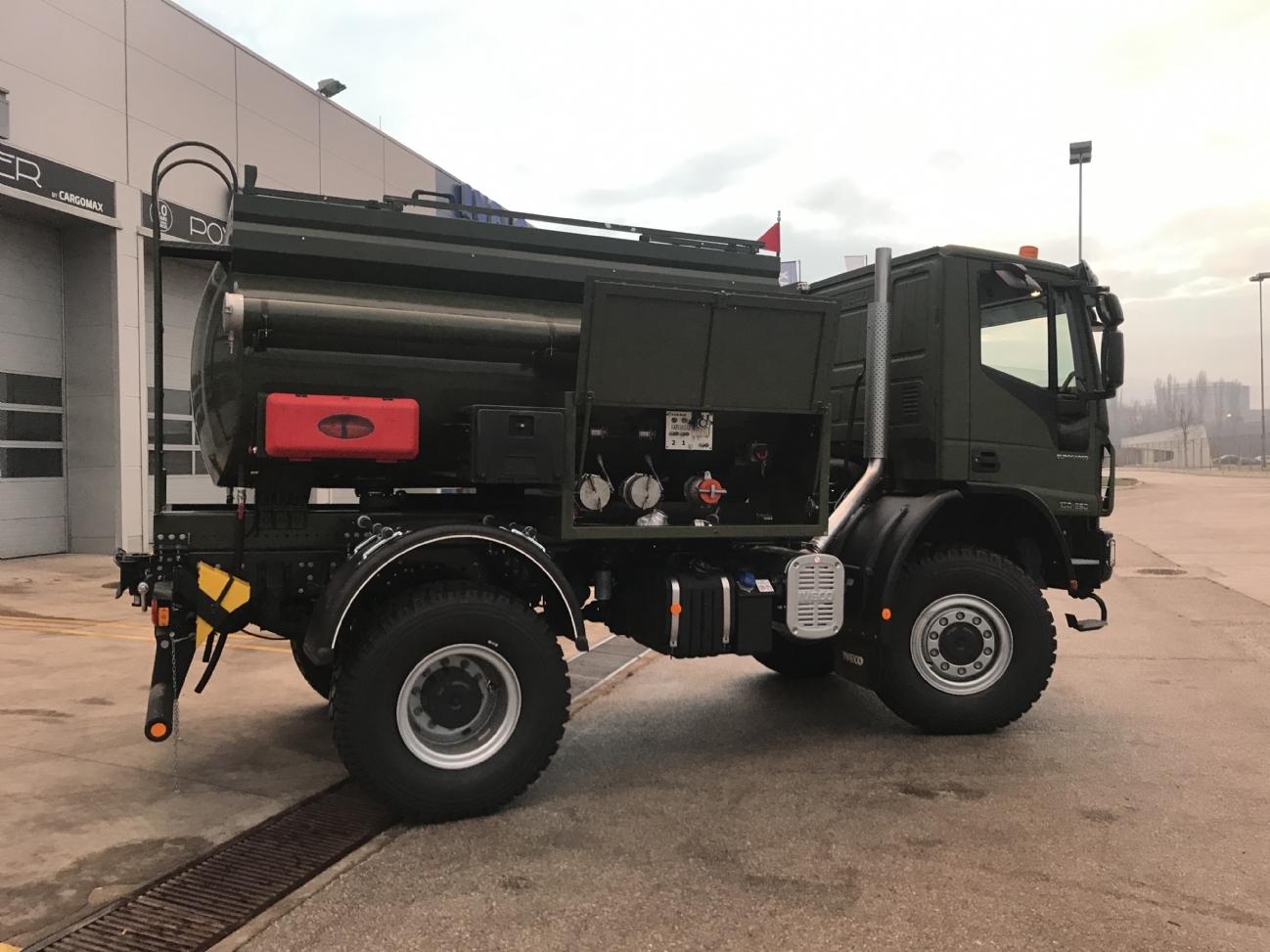

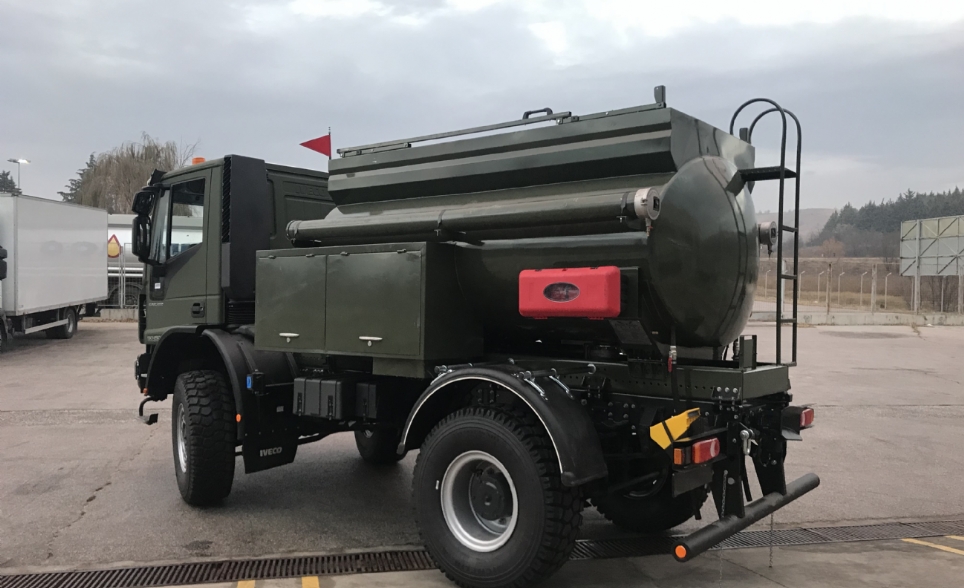

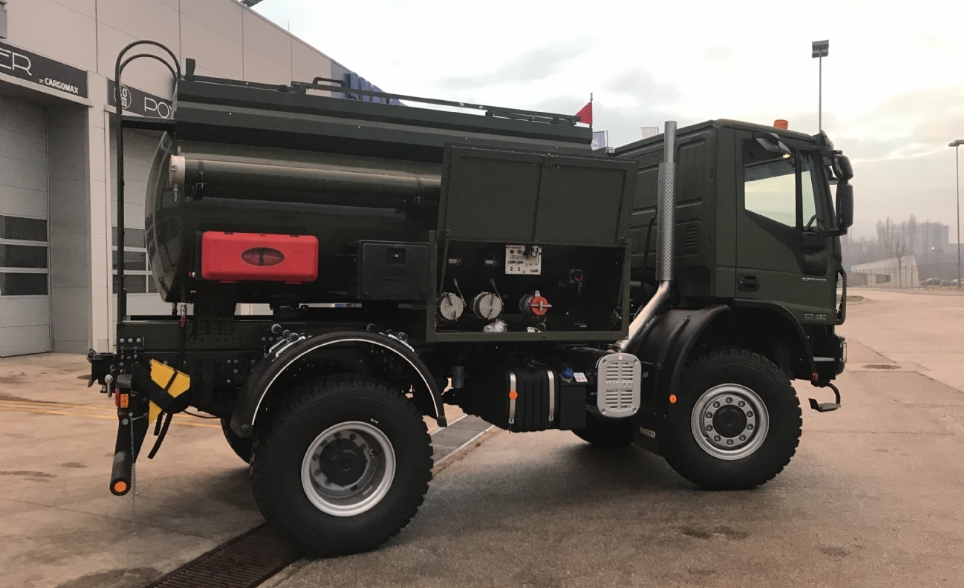

Tank Body

*Cylindrical cross section design conforms to EN 13094 standard,

*Dished heads at the front and rear, in accordance with EN 13094 design standard internal baffles fit the selected number of compartments,

*Using seamless high-performance robotic welding technology, welding faults on the body due to tension and human factors are minimized and secured against impact,

*The slope in the chassis design allows complete discharge of each compartment of the tank, with no liquid remaining,

*Air gap safety against expansion and overflow conforms to EN 15120 standard,

Subframe:

Suitable for body design, rollover safety special design subframe made of steel material that can be adapted to bolt connection according to the manufacturer's superstructure installation instructions for all types of truck chassis,

Chassis Equipment:

Mudguard :  Semi-circle rigid plastic fender mounted on each wheel with aluminium clamp

Mudflaps : Conform 109/2011/EU directive type approved anti-spray mudflaps

Lateral Protection : Conforms ECE R73 regulation protection equipment (lateral protection etc.)

Paint

At least 2 coats of epoxy primer

"OVEN-DRYING" application on topcoat with 2 coats of acrylic paint,
