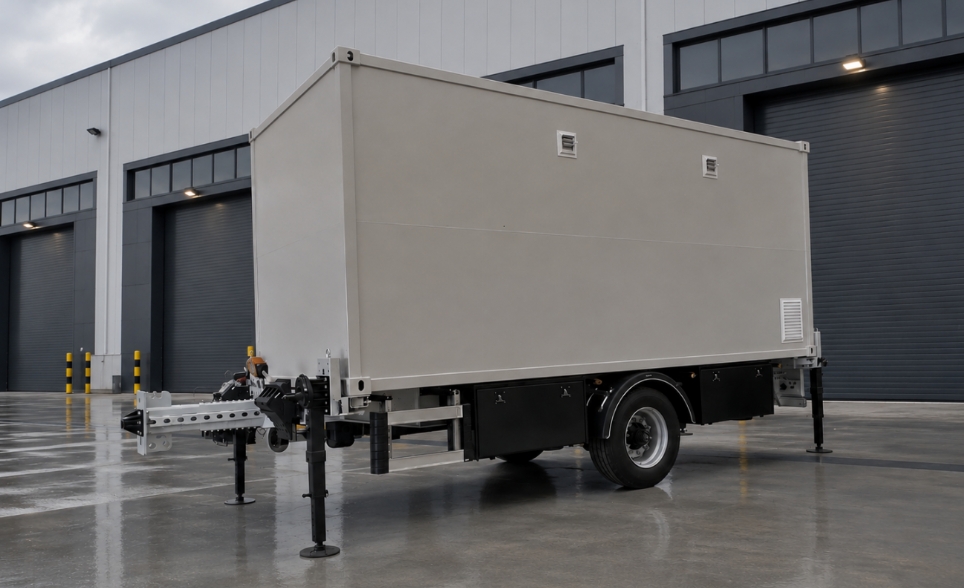

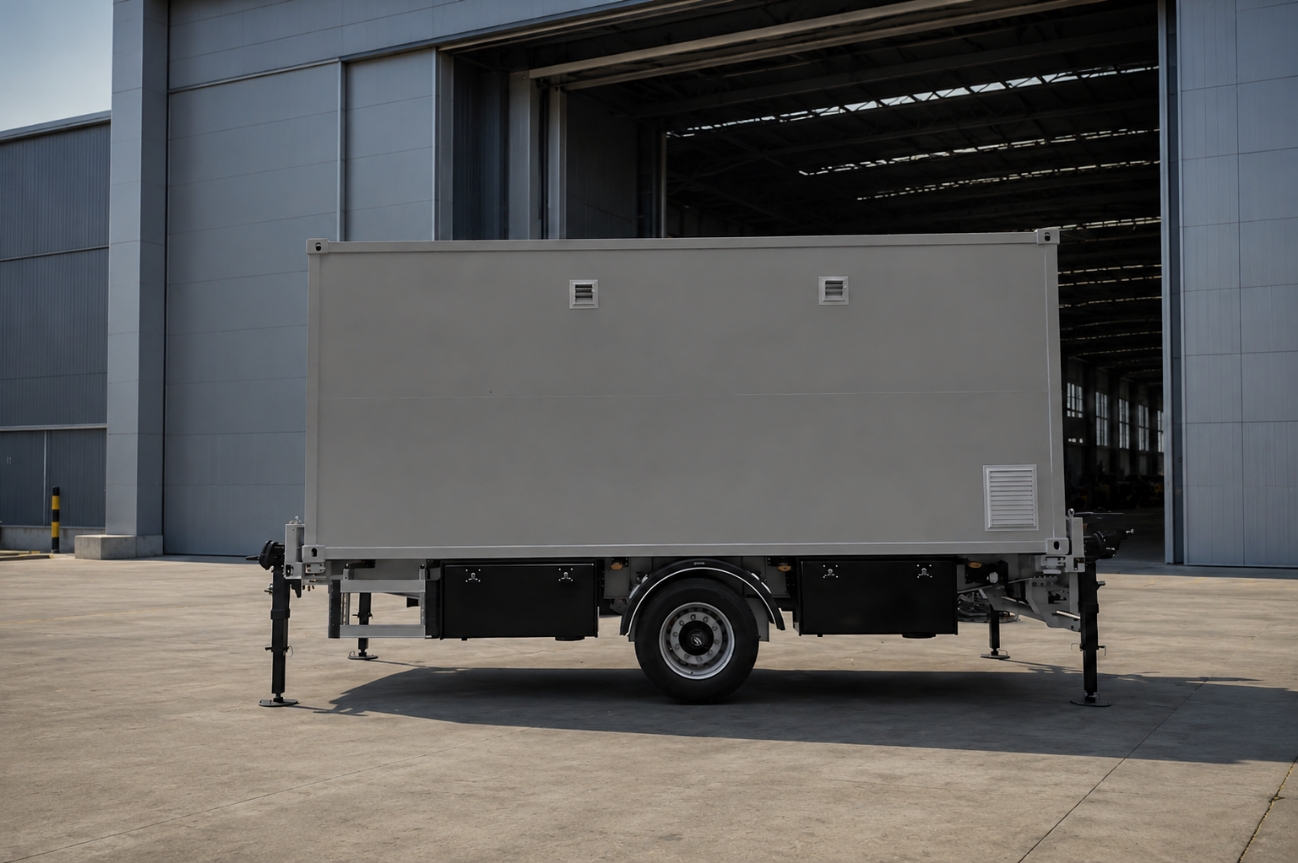

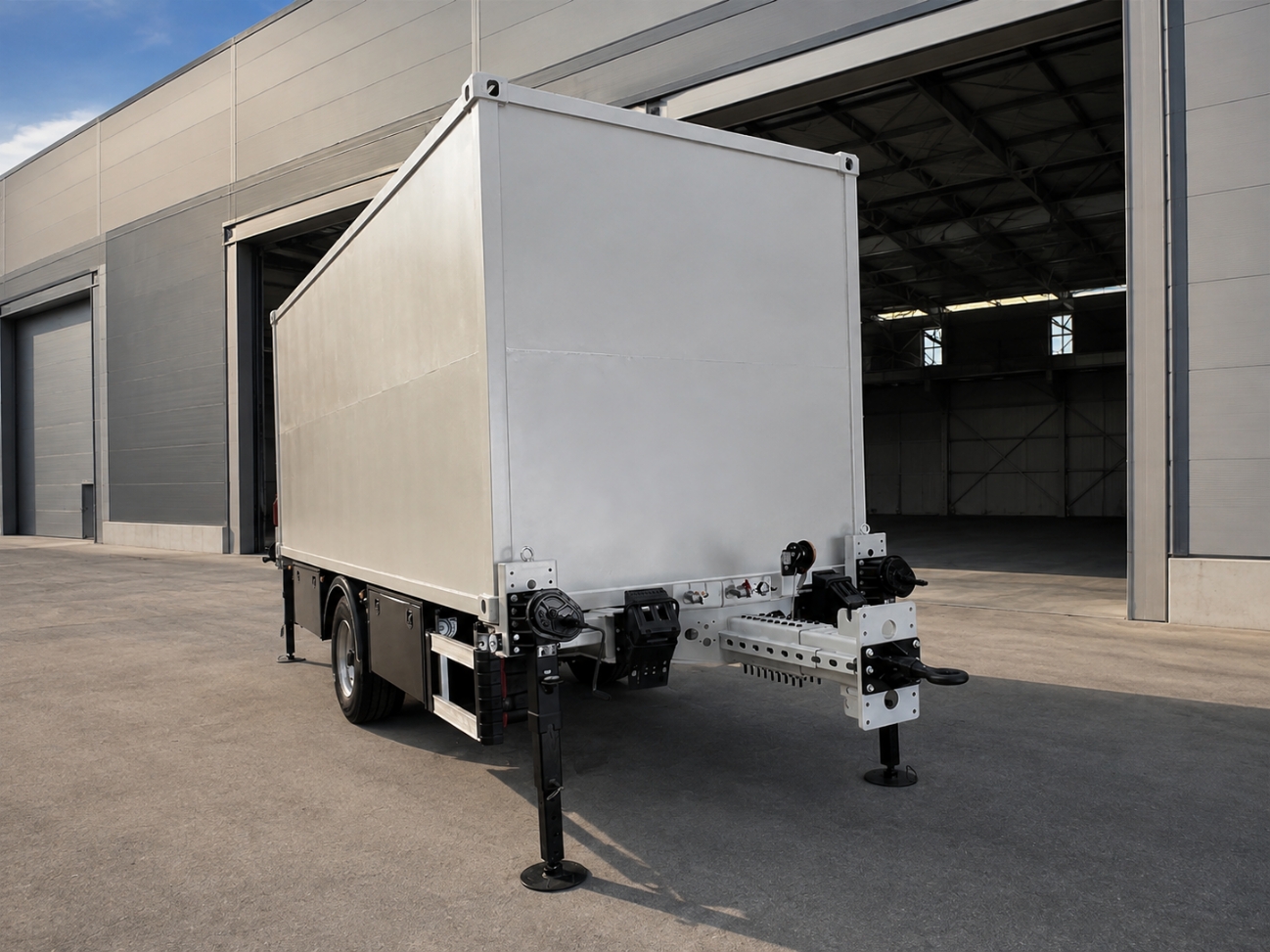

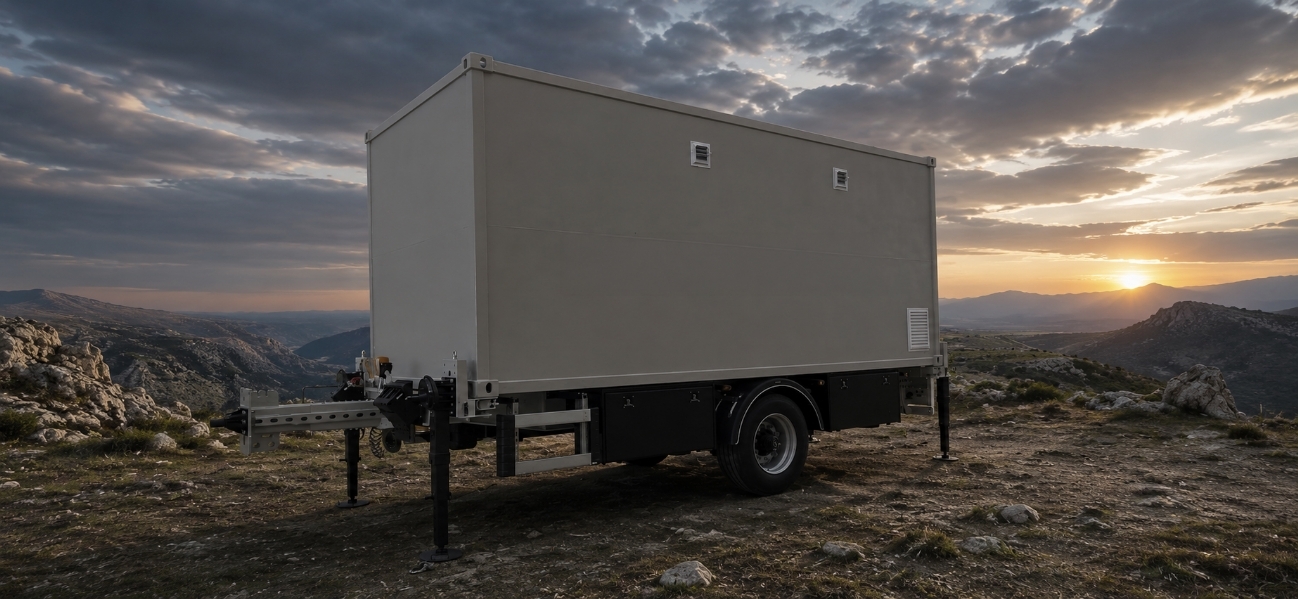

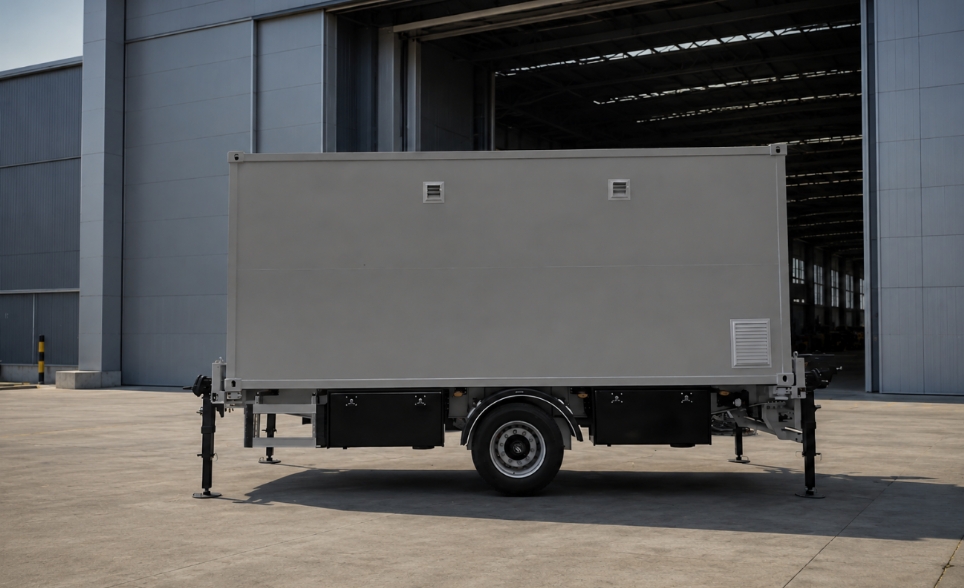

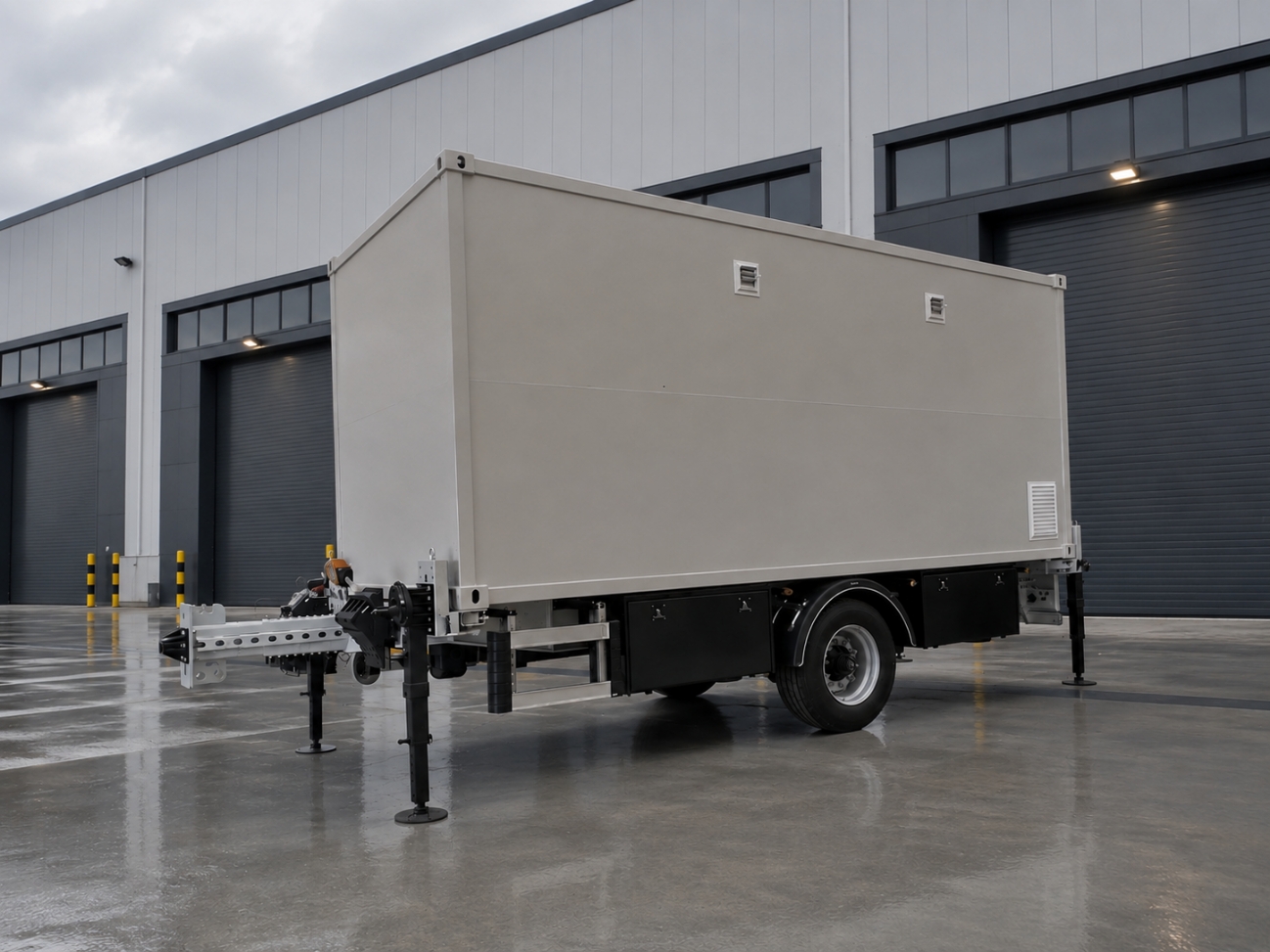

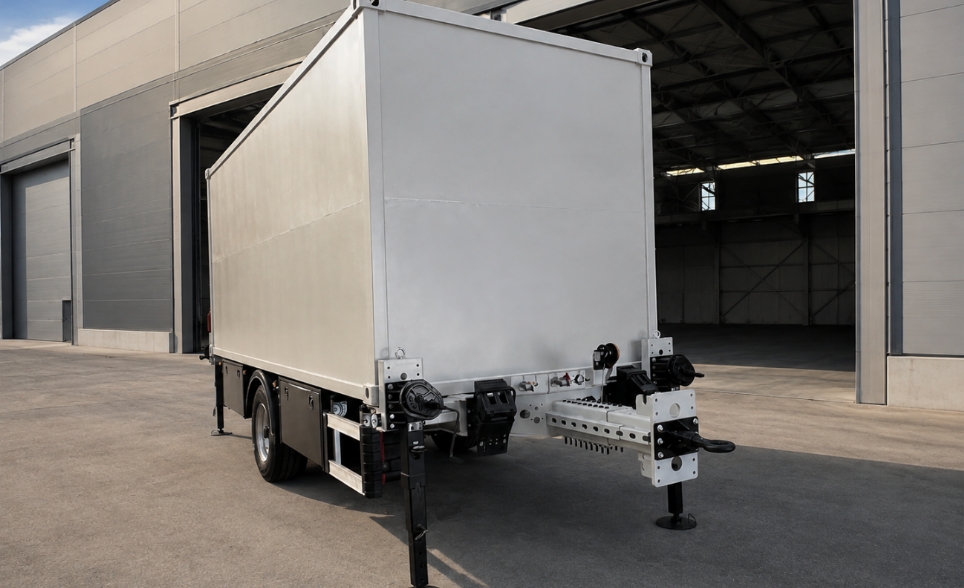

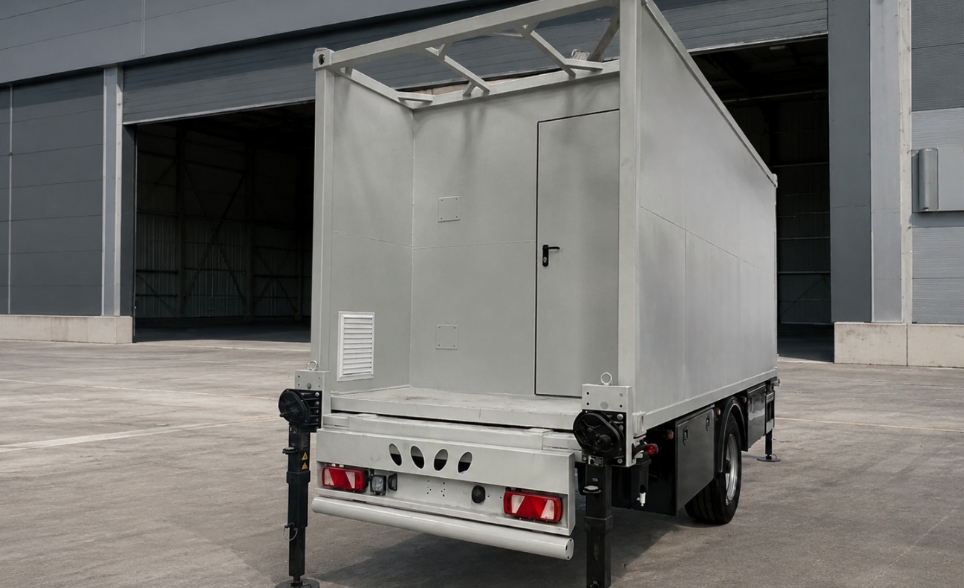

Trailer Technical Specifications
- Height (Including Container): 3671 mm
- Chassis Height: 1098 mm
- Rear Door Clearance Height: 2141 mm
- Payload Capacity: 10,520 kg
- Unladen Weight: 1980 kg
- Gross Vehicle Weight (GVW): 12,500 kg
- Axle Count: 1
- Brake System: Air-operated with ABS
- Tire and Rim Size: 385/55 R22.5 – 11.75x22.5 rim
- Hitch Type: 76 mm swivel-type towing eye (compliant with STANAG 4101)
- Chassis Material: S355 high-strength steel
- Electrical Connector: 7-pin ISO 1724
- Lifting System: 4-point mechanical lifting system
- Container Compatibility: 20 ft standard container
- Surface Treatment and Paint: SA 2.5 sandblasting, primer + acrylic top coat
Driving Angles
- Approach Angle: 7.8°
- Departure Angle: 8.4°
- Side Tilt Angle: 7.8°
Container Interior Equipment Features
- 1 × 19" rack cabinet
- UPS power system
- Internal environment type air conditioner
- Marine-type refrigerator
- Equipment cabinet
- 3 × computers
- 1 × TV monitor
- 3 × command chairs
